PermFlowDUO

Diagnostic Systems


Portable felt moisture and permeability meter

PermFlowDUO™ is the World’s first portable instrument to include moisture and permeability meter; for half time to measure, double safety, reducing dramatically the investment & maintenance costs.

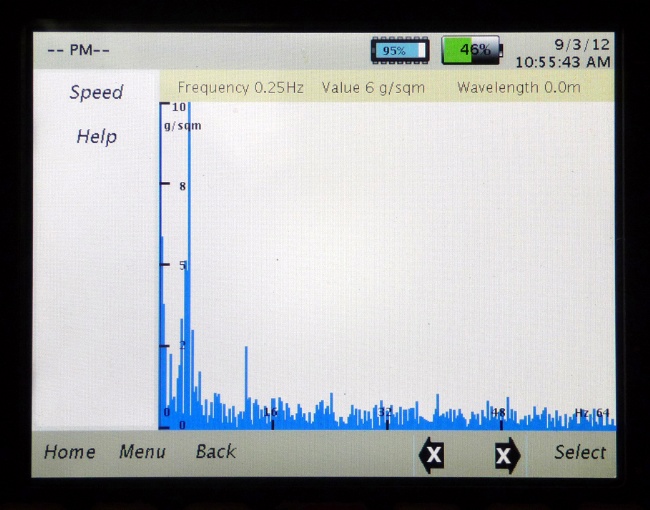

PermFlowDUO™ uses harmless microwaves to obtain the measurements, with a moisture sampling rate at 1024 sample/sec. for the best resolution when conducting FFT analysis allowing exclusive on-board FFT & felt 3D mapping software, without need for position detecting devices.

PermFlowDUO™ permeability rangeis 0-3000 ml/min, when moisture range: 0-3000 gr/m², with on-board accurate & personalized calibration curves to compare values to other standard instruments.

Available on request: accurate infrared felt surface temperature reading.
Photogallery

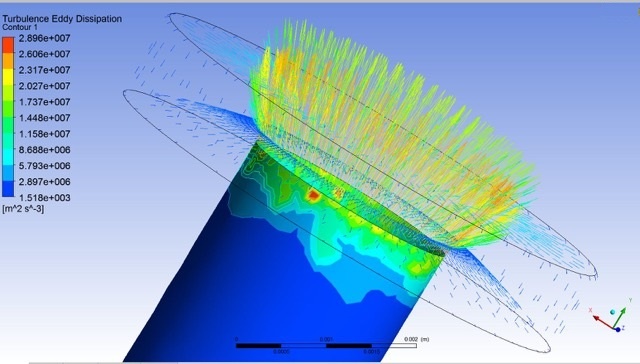

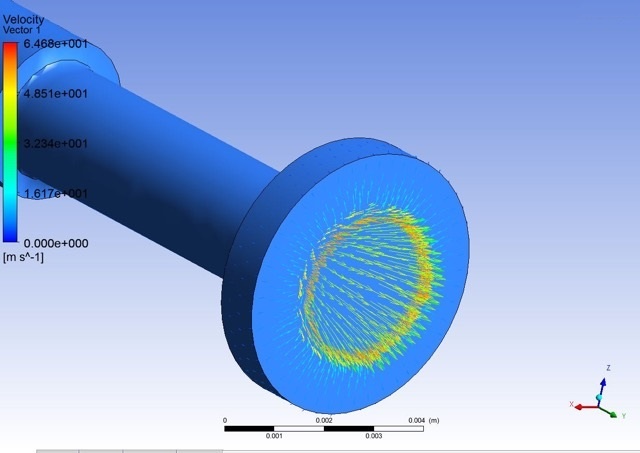

FEM fluid dynamic simulation of the flow in PermFlowDUO™ nozzles
FEM fluid dynamic simulation of the flow in PermFlowDUO™ nozzles
