EasyScan™

Diagnostic Systems


EasyScan™ unmanned plug & play safe scan system.

Performing measurements on running paper machines present risks, exposing the technicians to high danger. Safety regulations and state laws are banning the access of operators in running paper machines to perform manual scans of the machine clothing.

EasyScan™ is a plug&play transversal beam engineered to work with PermFlowDUO™ (the Industry’s only portable felt moisture & permeability meter), or any other available on the market, eliminating the needs for operator access to paper machine, virtually erasing the risk of accidents.

EasyScan™ is based on a solid self supporting, stainless steel structure which guides and completely protect the transportation systems for the PermFlowDUO™ portable meter.
One meter can be installed on several EasyScan™ systems, reducing considerably the investment cost.

The patended transportation system is beltless/chainless, erasing any requirement of maintenance typical of these configurations

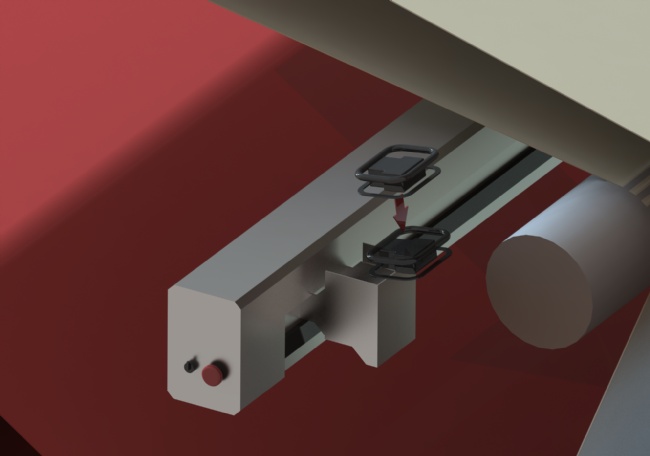

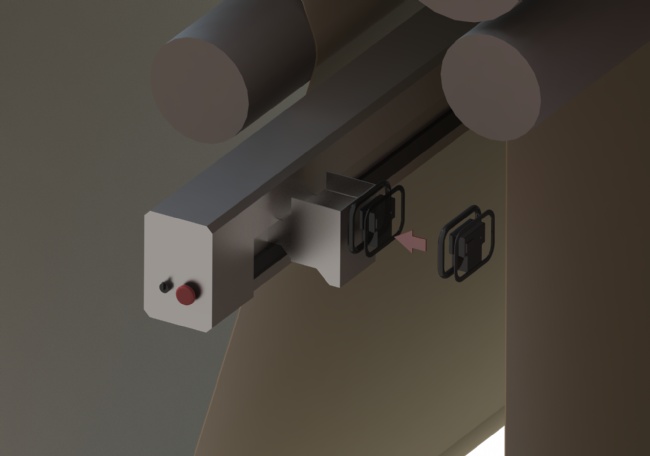

The meter locks easily to the EasyScan™ with the SmartOn™ fixation system (optional).
The pressure to the felt surface while measuring trough the paper trim is controlled pneumatically.

Targets:

  • Boost the safety during the press fabrics scan process;
  • Easily measure the press fabrics moisture & permeability;
  • Increase the amount of measuring points in the press section;
  • Accurate optimization of the vacuum in the suction boxes, reduce excess vacuum use;
  • Achieve important energy savings trough vacuum and press section setup optimization;
  • Optimization of the fabric CD moisture & permeability  profiles;


3 families of EasyScan™ are now available:

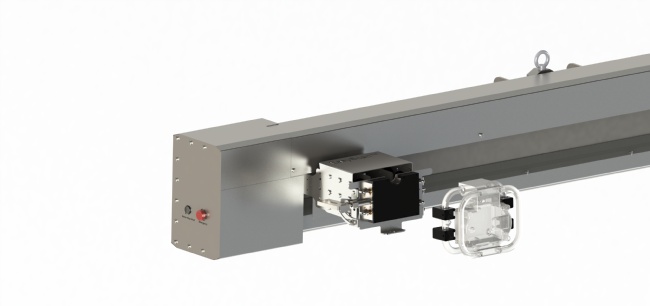

  • EasyScan™ 100 for the automation of portable meters;
  • EasyScan™ 300 for the automation of portable meters or on-line sensors such as FiberScanONLINE™ or SmartScan™;
  • EasyScan™ 500 for the automation of on-line felt moisture & permeability sensoring systems.
